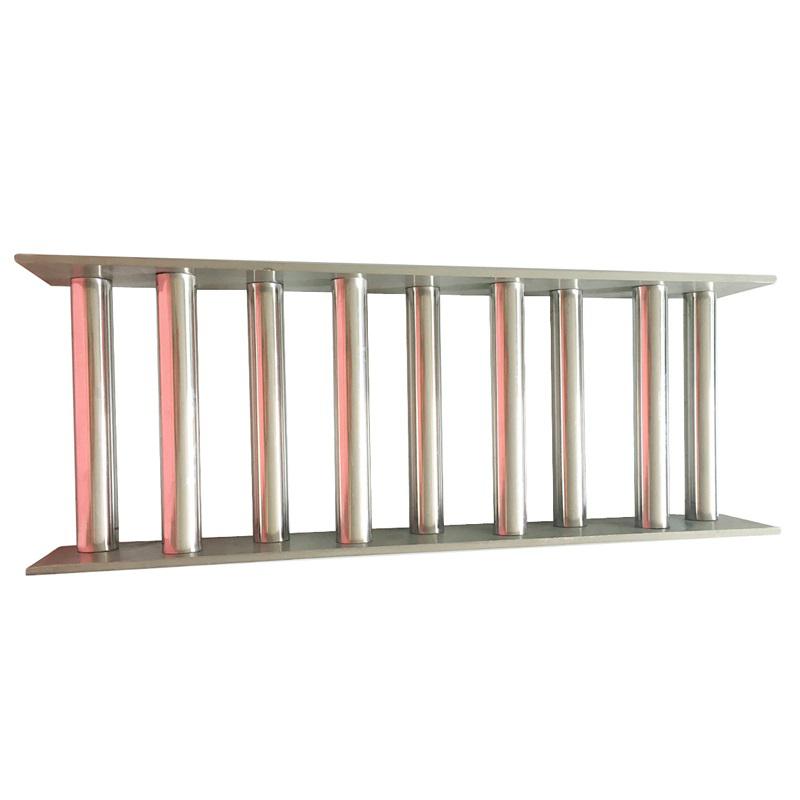

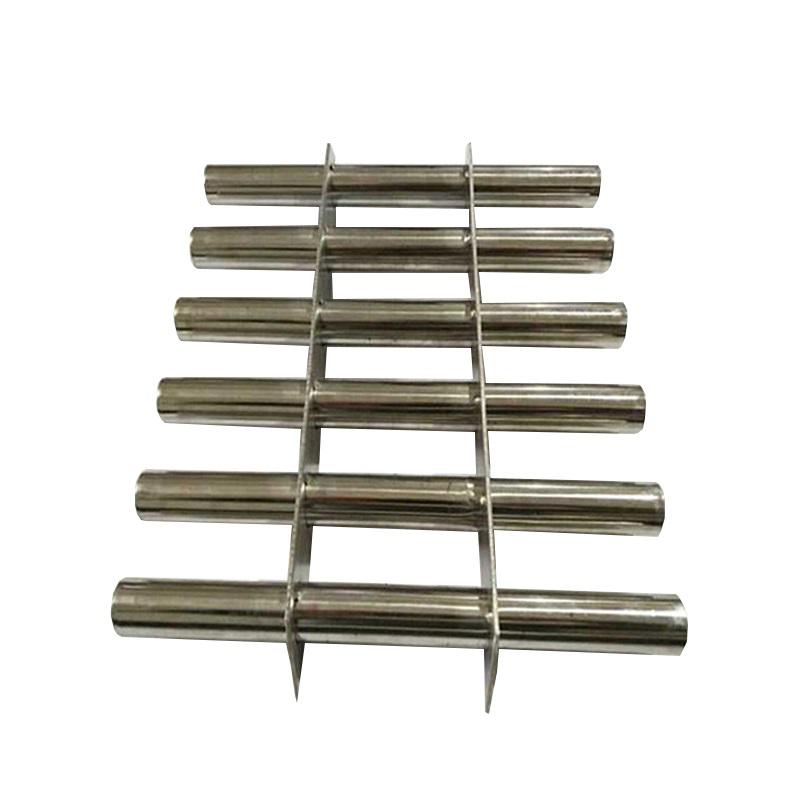

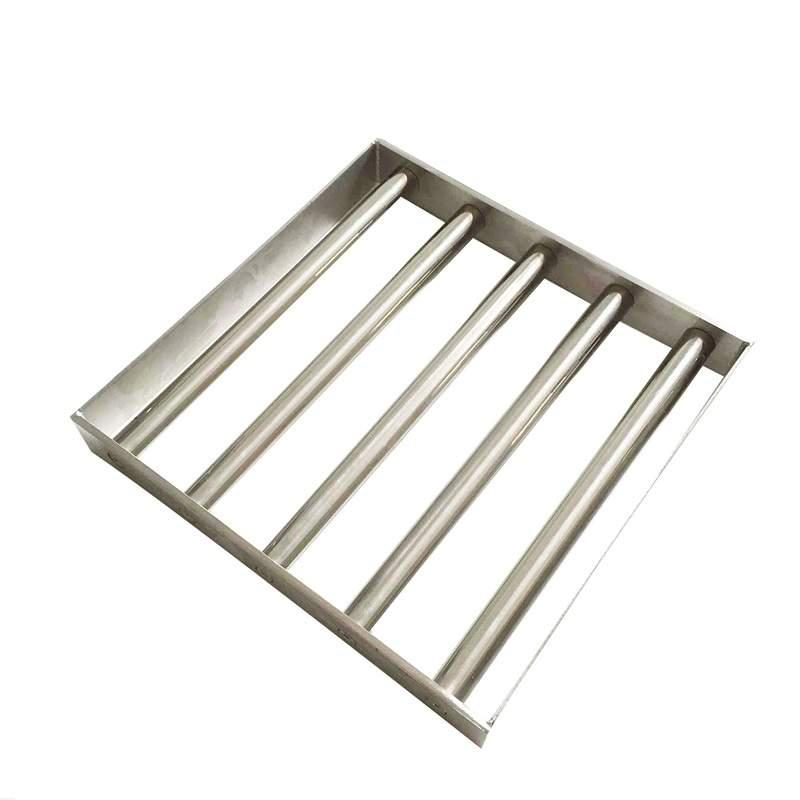

Single Layer Rectangular Neodymium Magnet Grate

Single Layer Rectangular Neodymium Magnet Grate

The design and material of the magnetic grate are various and can be customized according to different usage requirements. It is usually composed of multiple magnetic bars, which can be 25mm in diameter, and is used to generate a high-intensity magnetic field to effectively attract and fix iron powder, iron filings and other small pieces of magnetic metal in the flowing material. Its working principle mainly relies on the pure physical magnetic field effect, which will not cause secondary pollution to the product, so it can directly contact any material to work.

Product Details

Design Drawings

Optional Features

• Surface treatment: mirror polishing, brushed polishing;
• Surface material: SS304, SS316;
• Magnetic strength level of magnetic bar: 8000-14000Gs;
• Working temperature: 80-300℃;
• Size and shape: The size and shape can be made into multi-layer, circular, irregular polygon, semicircular, etc. according to requirements.
• Cleaning method: conventional type, easy-to-clean casing type;
• Optional accessories: handles, guide rods, guide plates.
• Other special requirements.

Application

Magnetic grates are great for removing hoppers and feed troughs. They're really effective at removing iron impurities in free-flowing powders and small particles. They're used in all sorts of machinery, like plastic dryers, crushers, automatic mixers, pelletizers, bag-making machines, and more. They can protect important mechanical parts in the machinery for a long time and improve the quality of the product after magnetic filtration.
