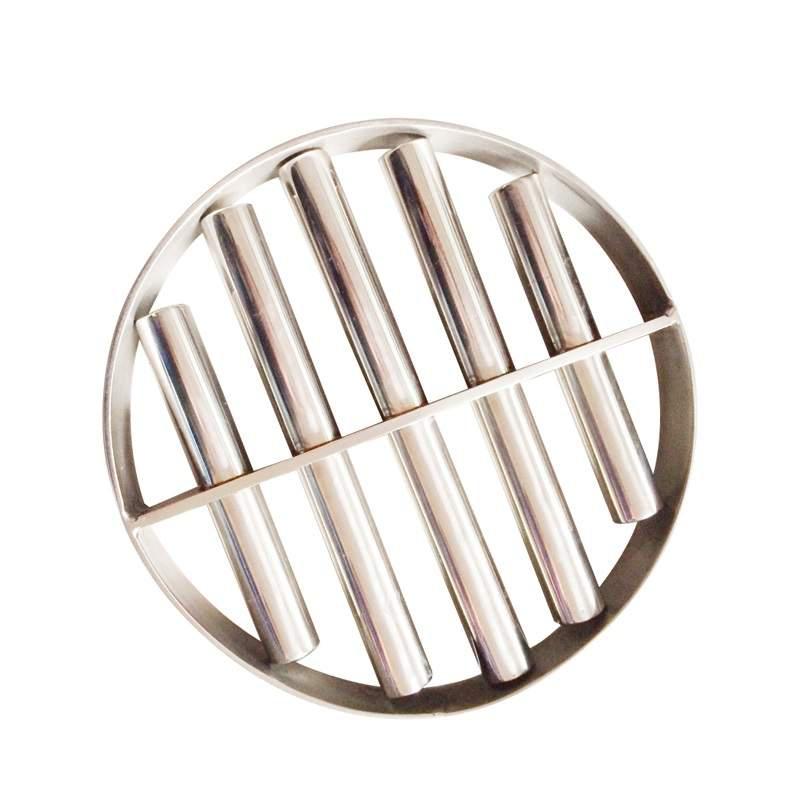

Two Layers Round Neodymium Magnet Grate

Two Layers Round Neodymium Magnet Grate

The magnetic grate is made of different shaped and sized magnetic bars fixed by stainless steel plates. The magnetic grate is usually round or square. It can be installed in the hopper, discharge port, or conveying pipeline. When material flows through the grate, iron impurities are adsorbed on the bars, purifying the material and protecting downstream equipment. The grate can filter fine iron impurities in powder, granular, liquid, and gas materials.

Product Details

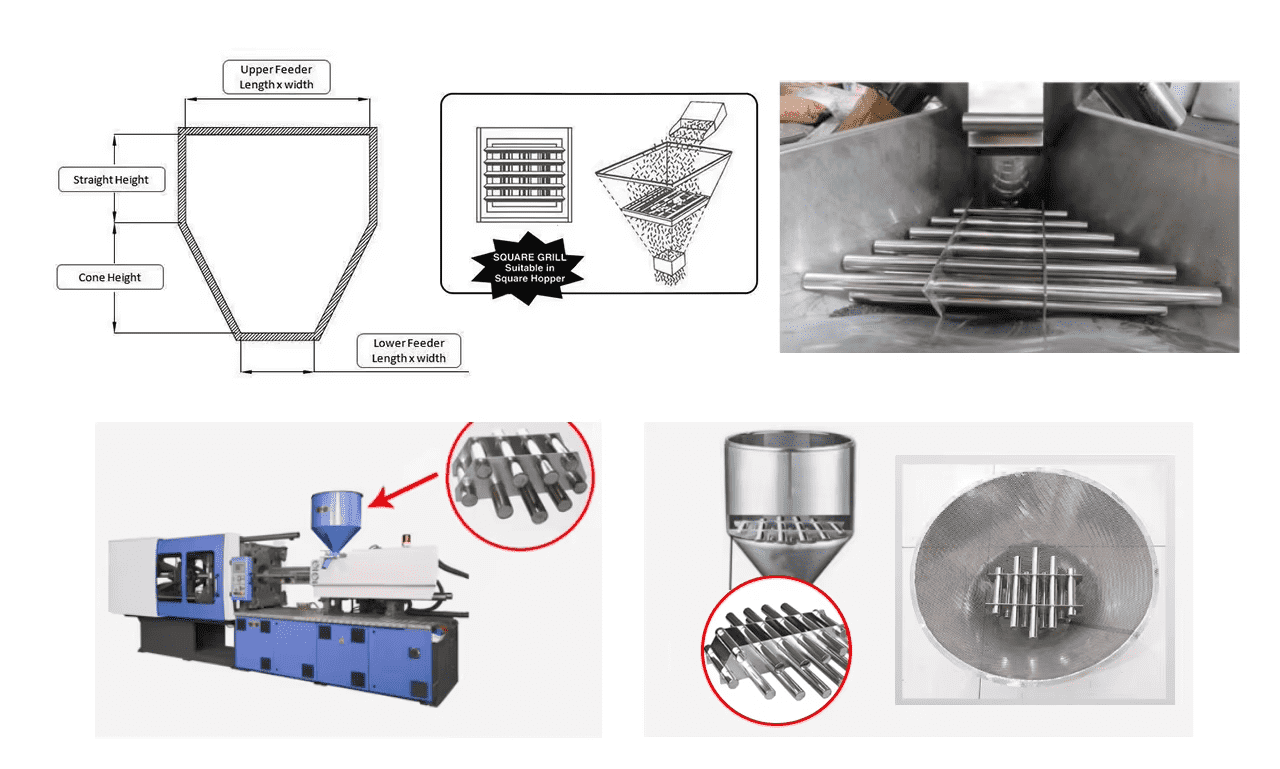

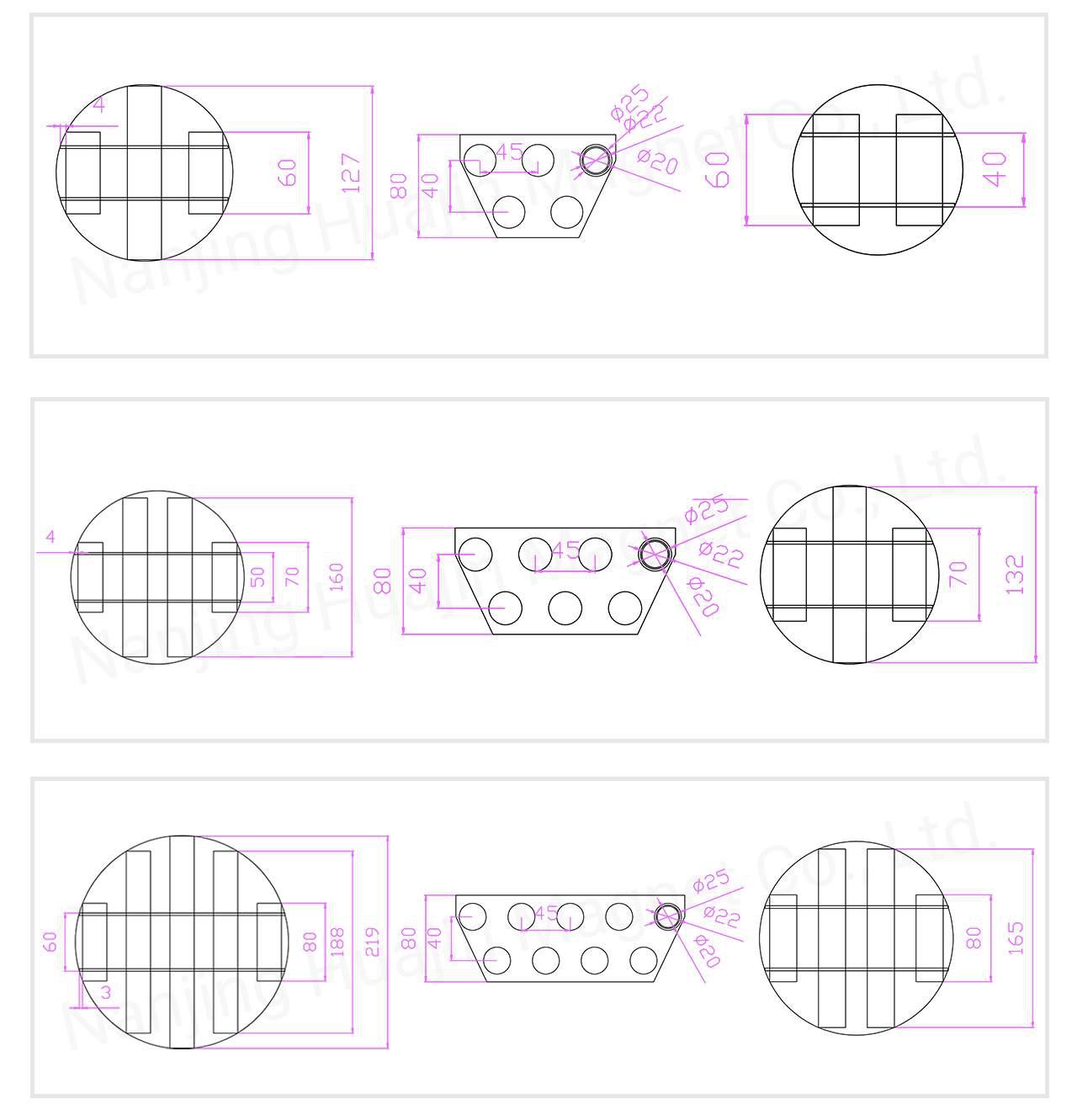

Design Drawings

Optional Features

• Surface treatment: mirror polishing, brushed polishing;
• Surface material: SS304, SS316;
• Magnetic strength level of magnetic bar: 8000-14000Gs;
• Working temperature: 80-300℃;

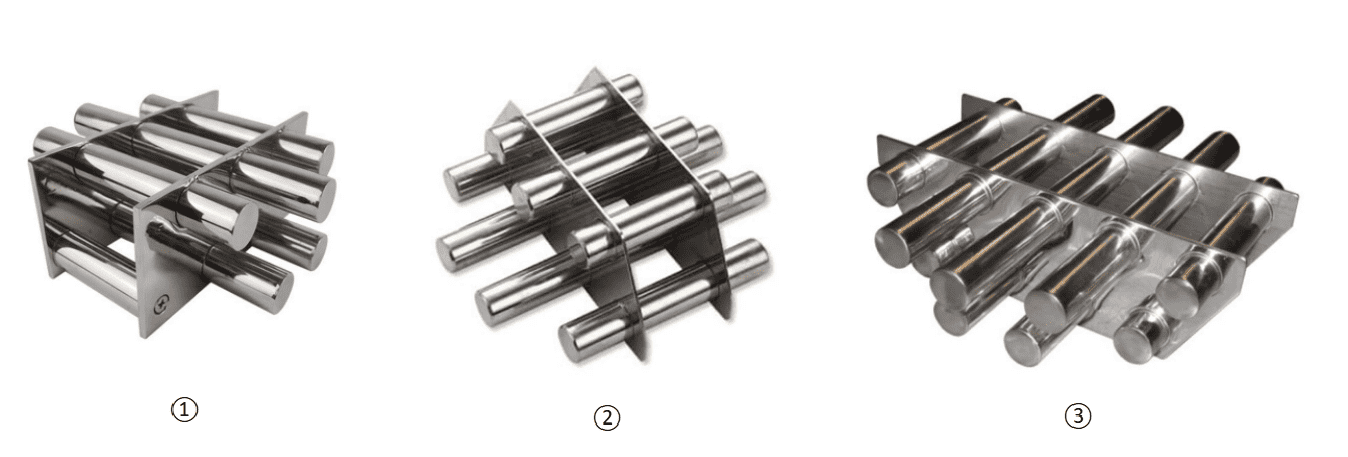

• Size and shape: The size and shape can be made into multi-layer, circular, irregular polygon, semicircular, etc. according to requirements.
• Cleaning method: conventional type, easy-to-clean casing type;
• Optional accessories: handles, guide rods, guide plates.
• Other special requirements.

Application

Magnetic grates are great for removing hoppers and feed troughs. They're really effective at removing iron impurities in free-flowing powders and small particles. They're used in all sorts of machinery, like plastic dryers, crushers, automatic mixers, pelletizers, bag-making machines, and more. They can protect important mechanical parts in the machinery for a long time and improve the quality of the product after magnetic filtration.
